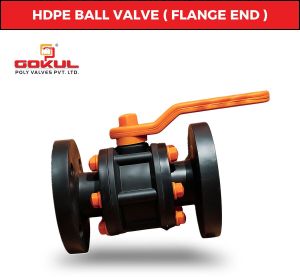

PVDF Ball Valve Flange End

PVDF Ball Valve Flange End
Business Type Manufacturer
Material of Construction Pvdf(polyvinylidene Fluoride)
Design 3 Piece Design
Maximum Working Temp 120 C (consistently)
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Connection End
Flanged as per Ansi B 16.5 (150#) & Bs 10 (table D/e/f) & Din Std.
Construction
3 Piece Design, 1 Piece Stem (spindle), Full Bore, Teflon Seated
Hydraulic Test Pressure
Body-150 Psi & Seat-100psi
Size Range
½” 15mm to 12’’-315mm
Standard
As per Manufactuer’s

Yes! I am interested


MATERIAL SPECIFICATION

DESCRIPTION QTY. MATERIAL
Side Piece /Flanged end 2 PVDF
Body 1 PVDF
Ball 1 PVDF
Stem/Spindal 1 S.S
Seat Ring 2 PTFE (TEFLON)
Body”O”Ring 2 Noeprene
Stem Seal Ring 1 PTFE (TEFLON)
Stem “O” Ring 1 Neoprene
Stud, Nut & Washer REQ S.S
Nut Cap REQ Polypropylene.
Handle 1 M.S. PP Coated.
Handle Hex. Pin 1 M.S./ S.S.
Handle Cap 1 Polypropylene.

SIZE SPECIFICATION-ALL DIMENSIONS ARE IN ± 2 MM

Size L T OD ID H1 H
In. mm
1/2″ 15 mm 140 12.5 100 13.5 130 69
3/4″ 20 mm 142 14 101 19 131 75
1″ 25 mm 160 20 123 24 165 89
1 1/2″ 40 mm 182 20 140 38 197 109
2″ 50 mm 208 22 165 50 200 121
2 1/2″ 65 mm 227 25 185 63 255 144
3″ 80 mm 248 25 201 75 255 150
4″ 100 mm 302 28 228 100 350 182
6″ 150 mm 428 30 300 150 236
8″ 200 mm 505 32 360 201 325
10″ 250 mm 570 34 425 242 310
12″ 315 mm      590      35 487 300 309
